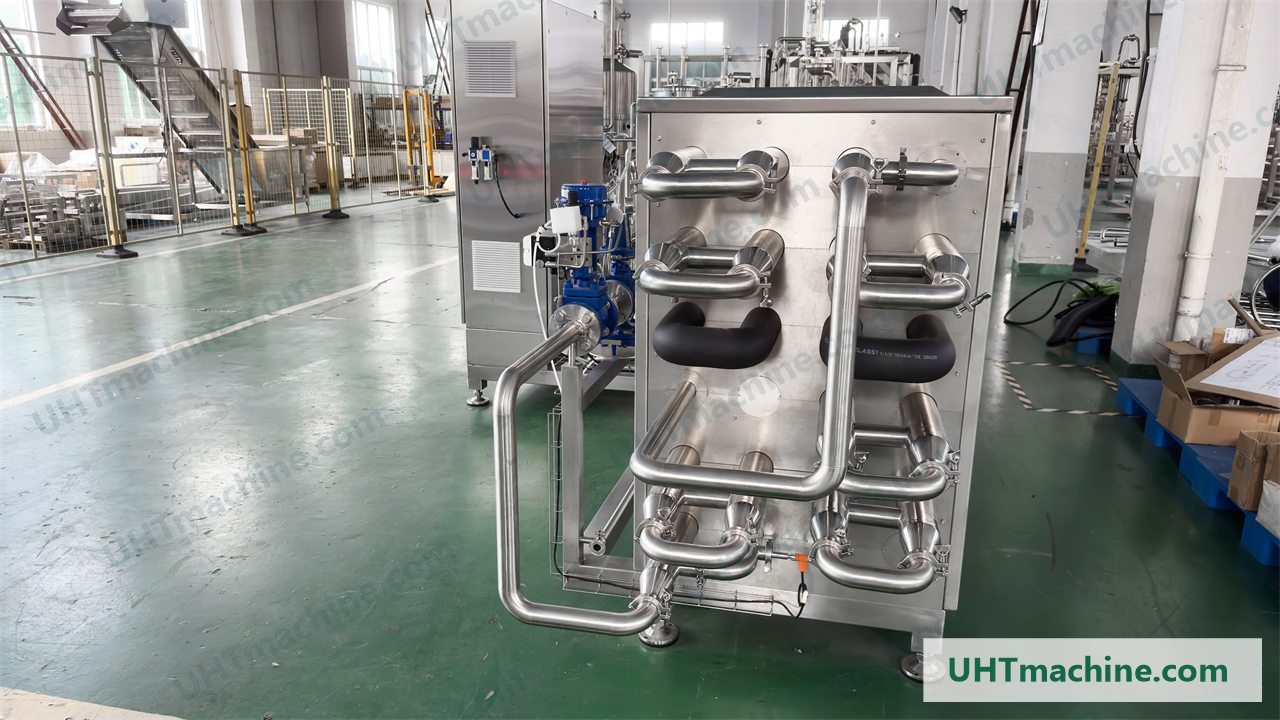

A tubular UHT sterilizer is a common indirect-heating option for pumpable liquid foods that need continuous heat treatment and transfer within a validated sterile boundary to an aseptic tank or filling system.
Confirm that the proposed tubular geometry can meet the duty within documented product, fouling, pressure-drop, cleaning, and turndown limits.
Technical overview
Tubular heat exchange is often discussed for milk beverages, juice drinks, tea, coffee, plant-based drinks, and other pumpable products. It is useful when the buyer needs a robust sanitary flow path and a configurable holding section.
The quotation should confirm product viscosity, pulp or particle content, fouling behavior, required capacity, sterilization target, cooling duty, homogenizer interface, CIP expectation, and whether the line connects to an aseptic tank or filler.
Very thick sauces, high-particle formulas, or products with strong fouling risk may need tube-in-tube or other project-specific configurations. Product samples or process notes help avoid underspecifying the line.
Selection boundary
A format name is not a specification. Require the proposal to show how the selected geometry performs with your product at operating temperature.
| Geometry definition | Ask whether “tubular” means a single product tube, a multi-tube bundle, a corrugated-tube design, or another indirect exchanger. Record tube count, diameter, length, product-side passage, and service-side arrangement. |
|---|---|
| Product passage | Confirm viscosity, maximum particle size and concentration, fibers or pulp, and the minimum unobstructed passage through the proposed circuit. |
| Hydraulics | Request design flow, pressure drop, pump duty, allowable turndown, and shear-sensitive product assumptions at the quoted operating condition. |
| Heat transfer | Ask for the thermal basis, heat-recovery assumption, fouling allowance, holding-volume calculation, and utility demand for each product family. |
| Cleaning | Define CIP circuits, target flow criteria, chemical and rinse steps, inspection points, expected run length, and the evidence used to release the line after cleaning. |
| Acceptance | Link the process guarantee to an agreed product or test medium, documented instruments, diversion logic, FAT protocol, and site-validation responsibility. |
Inquiry checklist
Buyer questions
It is used for continuous ultra high temperature treatment of pumpable liquid foods such as dairy beverages, juice drinks, tea, coffee, and some plant-based drinks.
Yes, tubular UHT can be used for milk and dairy beverages, depending on capacity, heat sensitivity, homogenization needs, and filling-line integration.
CIP support can be included. The cleaning design should match product residue, pipe layout, temperature program, chemicals, and plant operating habits.
Price depends on capacity, heat exchange area, control system, material, CIP requirements, filling interface, utility matching, and installation scope.
